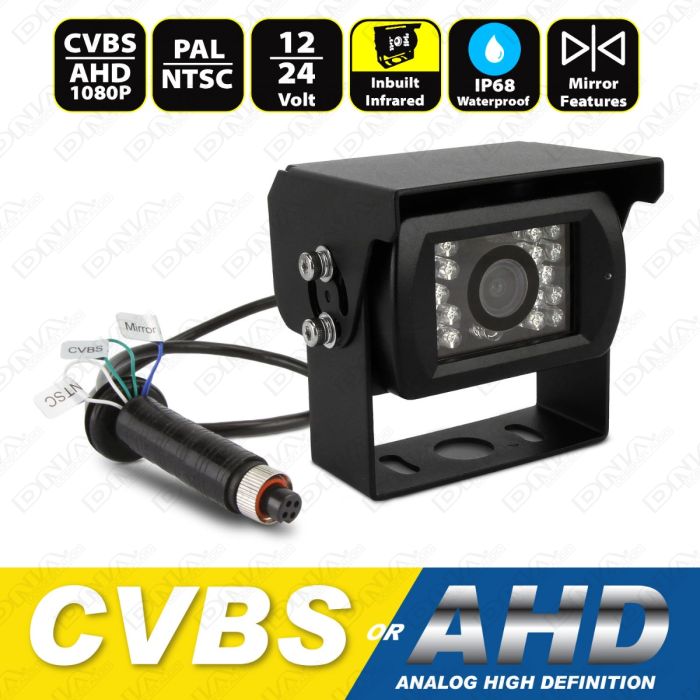

Heavy Duty CCD/AHD Camera - PAL/NTSC

Selectable features:
PAL/NTSC format (White wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Mirror Image (Blue wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
CVBS/AHD format (Green wire): By default is set to CVBS. (Cut wire to change to AHD 1080P)
SKU
RV100-HYB
In stock
$149.95
Add to Compare
Fast Shipping
Australia Wide
Australian Owned
& Operated
Secure Checkout
Multiple Payment Options
Selectable features:
PAL/NTSC format (White wire): By default is set to PAL format. (Cut wire to change to N...
Mirror Image (Blue wire): By default is set for rear camera installation. (Cut wire to ...
CVBS/AHD format (Green wire): By default is set to CVBS. (Cut wire to change to AHD 1080P)

Product Overview

Heavy Duty CCD/AHD Truck/Bus/Caravan Camera - PAL/NTSC Selectable features: This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety. 90° Horizontal Viewing angle (CVBS) 110° Horizontal Viewing angle (AHD) Sun Visor Included Microphone Included Material: Aluminium alloy shell S/N ratio: >48db Waterproof rating to IP68 Video output: 1Vp-p 75 ohm composite Supplied with 0.6m 4pin water resistant lockable connector

Technical Specifications

PAL/NTSC format (White wire) By default is set to PAL format.  (Cut wire to change to NTSC format)
Mirror Image (Blue wire) By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
CVBS/AHD format (Green wire) By default is set to CVBS.  (Cut wire to change to AHD 1080P)

Technical Specifications 2

Horizontal Resolution420TV Line
IR LEDS18 IR Led
Operating Voltage12V or 24V DC

Technical Specifications 3

Dimensions (With Sunvisor)76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor)74mm W x 71mm H x 50mm D
PackagingWhite Box with DNA Sticker

Selectable Features

PAL/NTSC format (White wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)

Mirror Image (Blue wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)

CVBS/AHD format (Green wire):  By default is set to CVBS.  (Cut wire to change to AHD 1080P)
