Heavy Duty AHD Camera - PAL/NTSC

Selectable features:
PAL/NTSC format (White wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Mirror Image (Blue wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
AHD 1080P/720P format (Green wire): By default is set to AHD 1080P. (Cut wire to change to AHD 720P)
SKU
RV100-AHD
In stock
$149.95
Quick Overview

You May Also Need....



Fast Shipping
Australia Wide
Australian Owned
& Operated
Secure Checkout
Multiple Payment Options
Selectable features:
PAL/NTSC format (White wire): By default is set to PAL format. (Cut wire to change to N...
Mirror Image (Blue wire): By default is set for rear camera installation. (Cut wire to ...
AHD 1080P/720P format (Green wire): By default is set to AHD 1080P. (Cut wire to change...

Product Overview

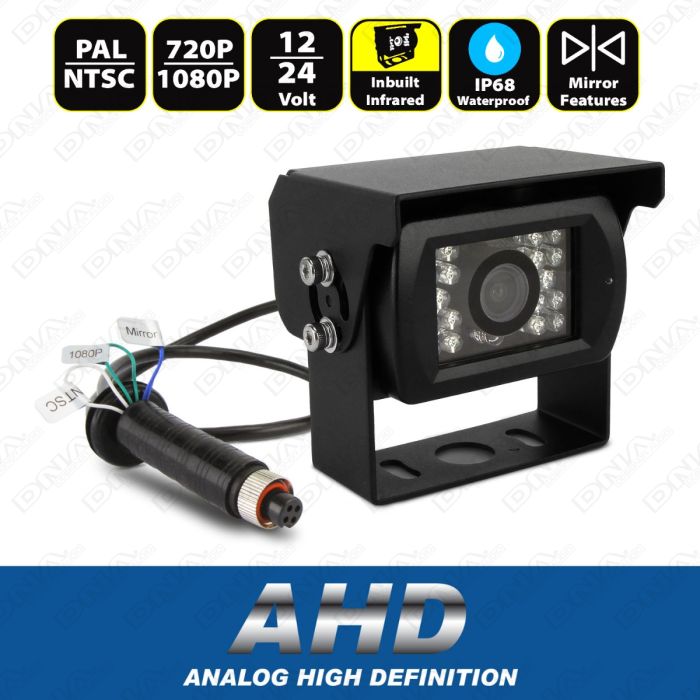

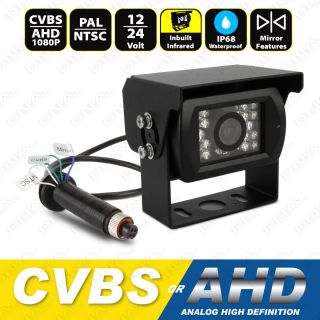

Heavy Duty AHD Truck/Bus/Caravan Camera - PAL/NTSC

Selectable features:
PAL/NTSC format (White wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)
Mirror Image (Blue wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
AHD 1080P/720P format (Green wire):  By default is set to AHD 1080P.  (Cut wire to change to AHD 720P)

This all metal waterproof construction camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety.

110° Horizontal Viewing angle
Horizontal Resolution: 420TV Line
IR LEDS: 18 IR Led
0  LUX illumination (night mode)
Operating Voltage: 12V or 24V DC
Sun Visor Included
Microphone Included
Material: Aluminium alloy shell
S/N ratio: >48db
Waterproof rating to IP68
Video output: 1Vp-p 75 ohm composite
Supplied with 0.6m 4pin water resistant lockable connector
Dimensions (With Sunvisor): 76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor): 74mm W x 71mm H x 50mm D
Packaging: White Box with DNA Sticker

Heavy Duty AHD Camera - PAL/NTSC

Technical Specifications

PAL/NTSC format (White wire) By default is set to PAL format.  (Cut wire to change to NTSC format)
Mirror Image (Blue wire) By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
AHD 1080P/720P format (Green wire) By default is set to AHD 1080P.  (Cut wire to change to AHD 720P)

Technical Specifications 2

Dimensions (With Sunvisor)76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor)74mm W x 71mm H x 50mm D
PackagingWhite Box with DNA Sticker

Selectable Features

PAL/NTSC format (White wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)

Mirror Image (Blue wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)

AHD 1080P/720P format (Green wire):  By default is set to AHD 1080P.  (Cut wire to change to AHD 720P)
