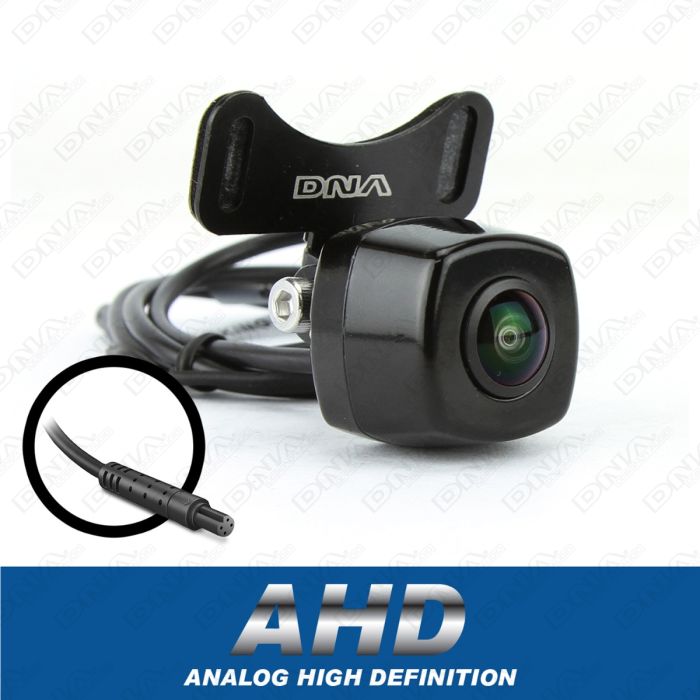

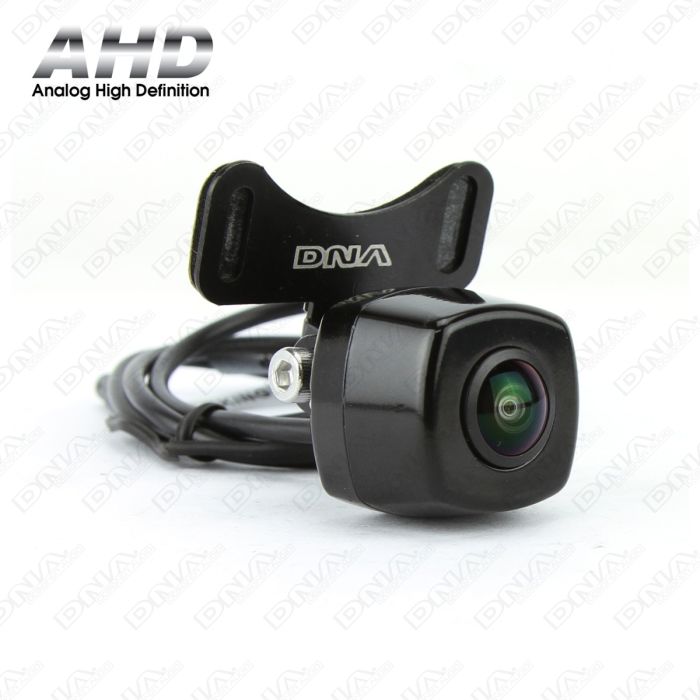

AHD Reverse Camera Large Butterfly Mount

AHD Reverse Camera Butterfly Mount

This butterfly camera is designed and built robust for 4WD, recreational and trade applications.

Model Strengths:
Heavy Duty Robust Design
Zinc Alloy Housing
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and has a Waterproof IP68 rating.
Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.

Selectable features:
AHD1080p/AHD720p format (Purple wire): By default is set to AHD1080P. (Cut wire to change to AHD720P)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)

Specifications:
Image Sensor: CMOS
Scanning area: 4.88mm*3.67mm
Resolution: 1920(H)*1080(V)
SNR: =38.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 28mm W x 22mm H x 22mm D
Butterfly Base Size: 44mm L x 18mm W
