CMOS Reverse Camera Adjustable Stalk Mount

CMOS Reverse Camera Adjustable Stalk Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

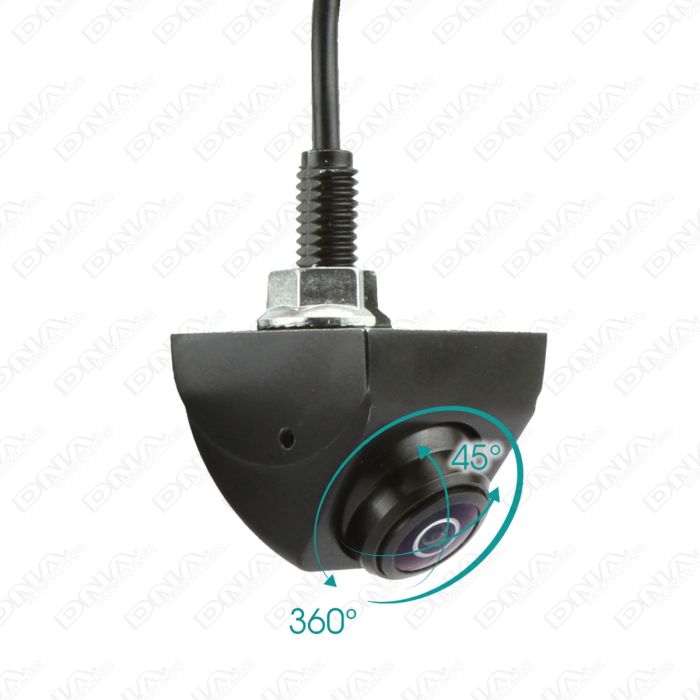

Featuring a flexible stalk that allows for precise positioning with lens head can be adjusted 45 degrees up, down, left, or right, and supports a full 360-degree rotation, enabling users to customize the viewing angle to suit any vehicle setup or parking scenario.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Only Requires 8mm Hole
PAL / NTSC Selectable*  (By default set to PAL.  To select NTSC cut the wire)
Mirror Image*
Flip Image*

Features:
Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Specifications:
Image Sensor:                   CMOS
Video System:                    PAL or NTSC (Selectable)
Scanning area:                   4.88mm*3.67mm
Resolution:                         976(H)*592(V)
Horizontal Resolution :       700 TVL
Electronic Shutter:             1s-1/10000(S)
SNR:                                   =45.0dB
Min Illumination:                 0.01Lux
Video Output:                    1.0V±0.5Vp-p 75O
View Angle:                        170°
Working Voltage:               DC6V-15V±0.5V
Consumption:                    100mA±10%
Waterproof Rating:           IP68
Camera Body Size:            25mm W x 24mm H x 28mm D
Hole Size:                          8mm Diameter

Packaging:                          DNA Gift box with sleeve
