CMOS Reverse Camera Butterfly & Flush Mount
CMOS Reverse Camera Butterfly & Flush Mount
This miniature butterfly camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*
Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.

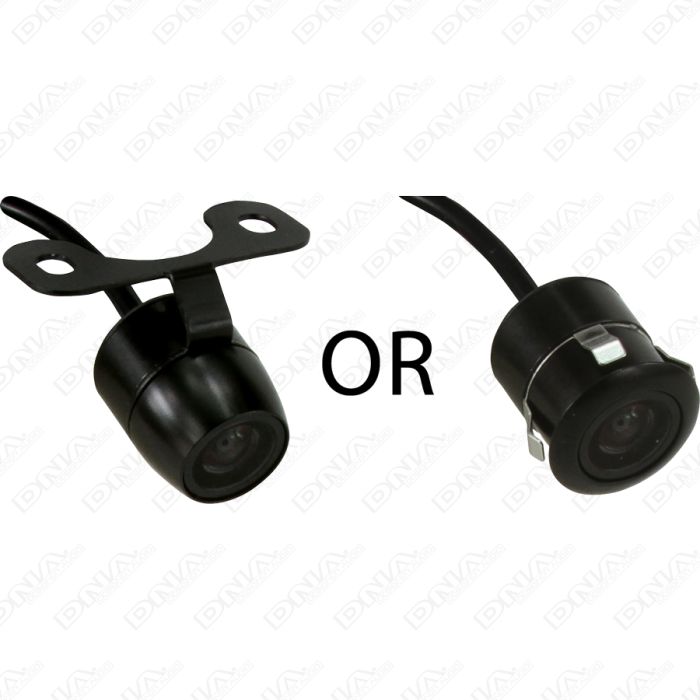

Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.
Selectable features:
PAL/NTSC format (Purple wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution: 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Butterfly Base Size: 38mm L x 16mm W
