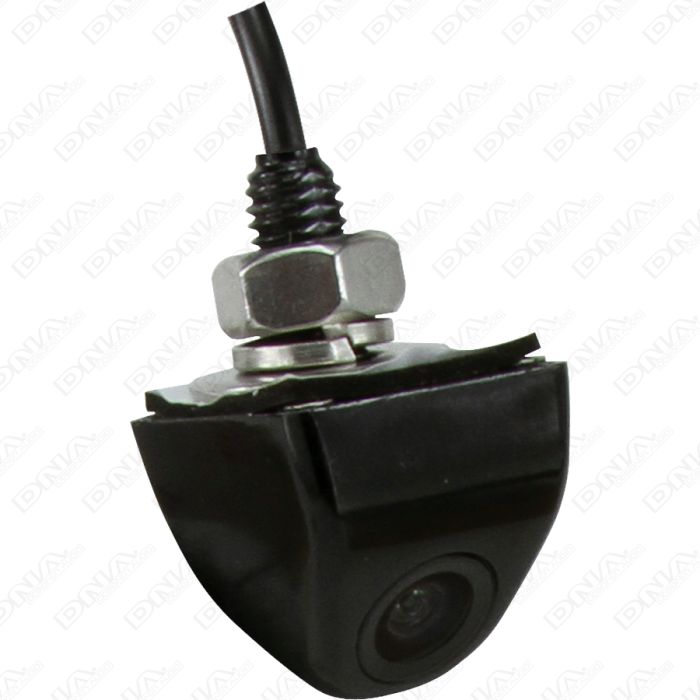

main product photo

CMOS Reverse Camera Stalk Mount - PAL/NTSC

Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.
Check compatibility and recommended applications.
Explore product construction, quality and performance features.
SKU
RCS170
In stock
$114.95
Add to Compare
Quick Overview

CMOS Reverse Camera Stalk Mount - PAL/NTSC

Fast Shipping
Australia Wide
Australian Owned
& Operated
Secure Checkout
Multiple Payment Options
Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Product Overview

CMOS Reverse Camera Stalk Mount This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish. Model Strengths: OEM Solution Zinc Alloy Housing Only Requires 8mm Hole PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire) Mirror Image* Flip Image*

Key Features

  • Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
  • Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Specifications

Image Sensor                   CMOS
Video System                   PAL or NTSC (Selectable)
Scanning area                  4.88mm*3.67mm
Resolution                        976(H)*592(V)
Horizontal Resolution       700 TVL
Electronic Shutter            1s-1/10000(S)
SNR                                 =45.0dB
Min Illumination               0.01Lux
Video Output                   1.0V±0.5Vp-p 75O
View Angle                      170°
Working Voltage              DC6V-15V±0.5V
Consumption                   100mA±10%
Waterproof Rating           IP68
Camera Body Size            25mm W x 24mm H x 28mm D
Hole Size                          8mm Diameter
Packaging                       DNA Gift box with sleeve
