AHD Reverse Camera Stalk Mount

Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.
Selectable features:
1080p/720p format (Purple wire): By default is set to 720P. (Cut wire to change to 1080P)
SKU
RCS170A-AHD
In stock
$114.95
Fast Shipping
Australia Wide
Australian Owned
& Operated
Secure Checkout
Multiple Payment Options
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror ...
Camera also comes with a stalk mount and has a Waterproof IP68 rating.
Selectable features:
1080p/720p format (Purple wire): By default is set to 720P. (Cut wire to change to 1080P)

AHD Reverse Camera Adjustable Stalk Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

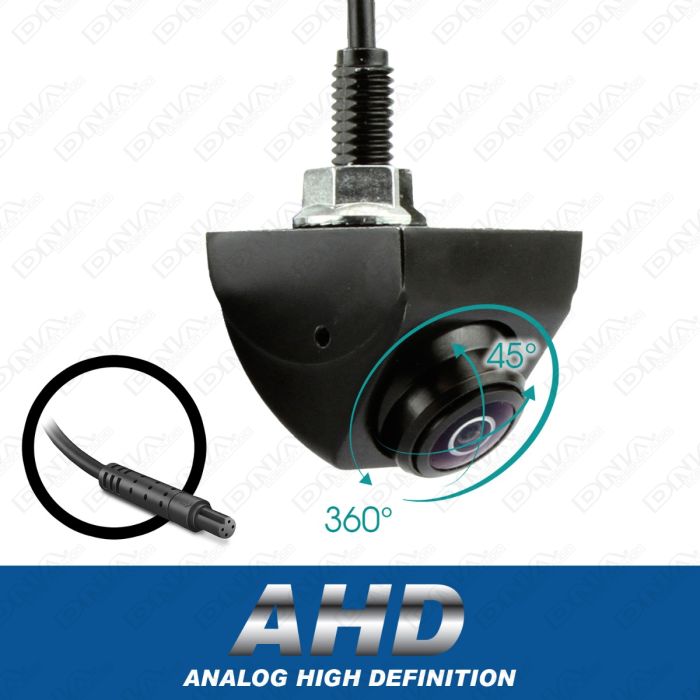

Featuring a flexible stalk that allows for precise positioning with lens head can be adjusted 45 degrees up, down, left, or right, and supports a full 360-degree rotation, enabling users to customize the viewing angle to suit any vehicle setup or parking scenario.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Only Requires 8mm Hole
1080P/720P*
Mirror Image*
Flip Image*

Features:
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Selectable features:
1080p/720p format (Purple wire):  By default is set to 720P.  (Cut wire to change to 1080P)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)


Specifications:
Video System: AHD
Resolution: 1920(H)*1080(V)
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Waterproof Rating: IP68
Camera Body Size: 28mm W x 22mm H x 22mm D
Butterfly Base Size: 44mm L x 18mm W
Packaging: DNA Gift box

Specifications

Video SystemAHD
Resolution1920(H)*1080(V)
View Angle170°
Working VoltageDC6V-15V±0.5V
Waterproof RatingIP68
Camera Body Size28mm W x 22mm H x 22mm D
Butterfly Base Size44mm L x 18mm W
PackagingDNA Gift box

Selectable Features

1080p/720p format (Purple wire):  By default is set to 720P.  (Cut wire to change to 1080P)

Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)

Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)
