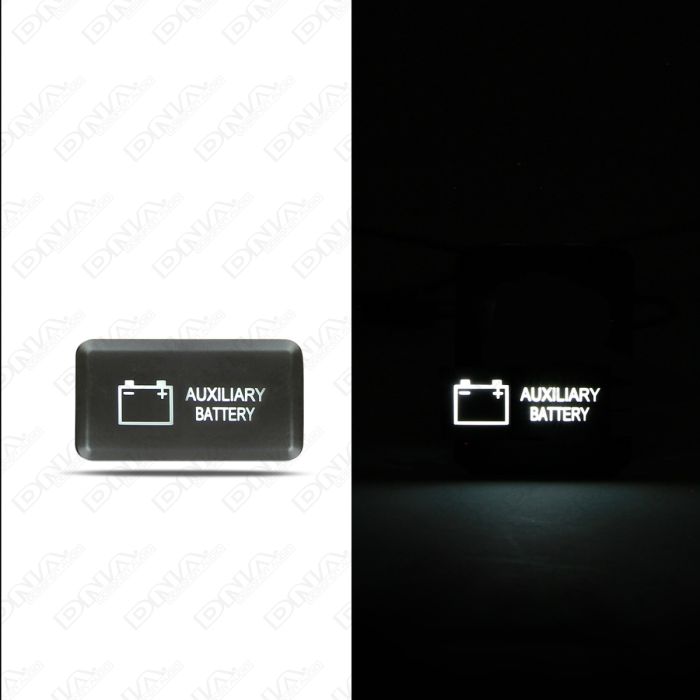

Horizontal Large Switch To Suit Toyota Landcruiser 79 Series - Auxiliary Battery

Designed to fit directly into a large blank factory switch socket in Toyota vehicles.
Simply just pop out the old blanking socket and plug this switch in.

Size: 40mm W x 20mm H x 61mm D
Power Rating: 12VDC 3 Amp
Illumination: Dual White
Switch Style: Momentary
Switch Colour: Black
Switch Markings: Auxiliary Battery
Packaging: DNA Blister & Card

Wiring - From Top to Bottom:
Pin 1 (Green) - Positive Input - Wire Direct to Battery or ACC+
Pin 2 (Red) - Positive Output - Wire to Relay
Pin 4 (Red) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Designed for Positive Switching Only

Suits the following Toyota vehicle:
Landcruiser 79 Series 1999-On
