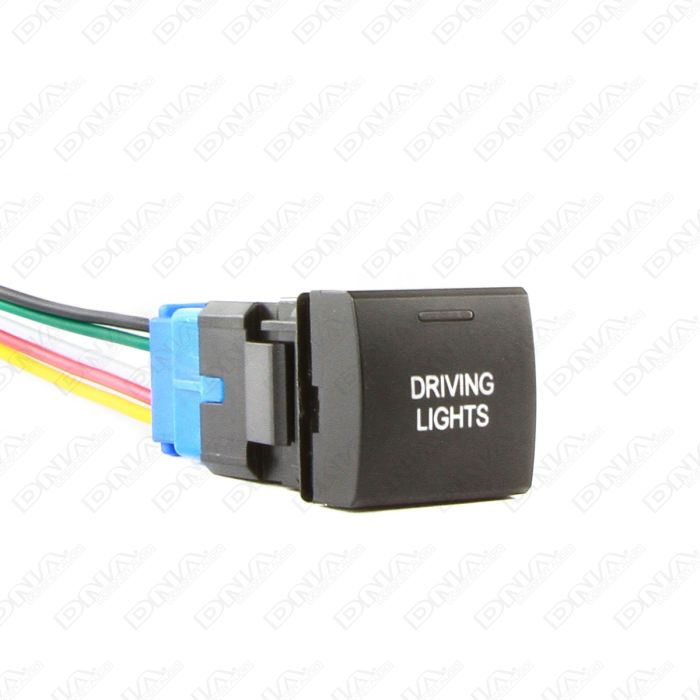

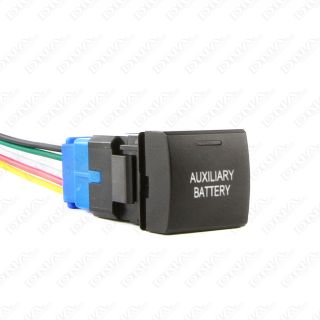

Small Square Switch To Suit Toyota - Driving Lights
Suits Toyota Vehicles:
Camry 2018-On
Prado 150 Series 2018-On
RAV4 2019-On
And other Toyota vehicles using square switches
Designed to fit directly into a square blank factory switch socket in Toyota vehicles.
Simply just pop out the old blanking socket and plug this switch in.
Size: 22mm H x 22mm W x 52mm D
Power Rating: 12VDC 3 Amp
Illumination: Dual White
Switch Style: SPST ON-OFF
Switch Colour: Black
Switch Markings: Driving Lights
Packaging: DNA Blister & Card
Wiring - From Top to Bottom:
Pin 1 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Pin 2 (Green) - Positive Input - Wire Direct to Battery or ACC+
Pin 4 (White) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Red) - Positive Output - Wire to Relay
Pin 6 (Yellow) - 12V Positive Output Illumination - Wire to Relay with Pin 5
Designed for Positive Switching Only
