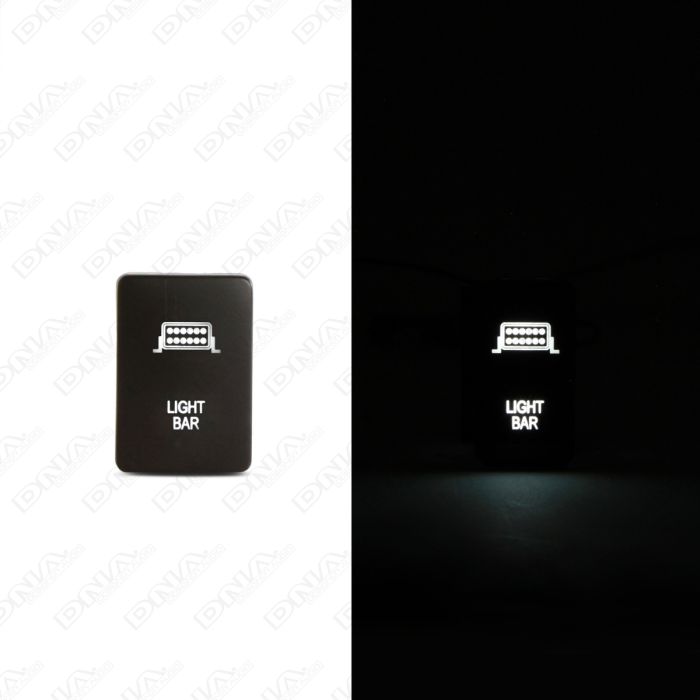

Small Switch To Suit Toyota - Light Bar

Designed to fit directly into a small blank factory switch socket in Toyota vehicles.
Simply just pop out the old blanking socket and plug this switch in.

Size: 32mm H x 20mm W x 52mm D
Power Rating: 12VDC 3 Amp
Illumination: Dual White
Switch Style: SPST ON-OFF
Switch Colour: Black
Switch Markings: Light Bar
Packaging: DNA Blister & Card

Wiring - From Top to Bottom:
Pin 1 (Green) - Positive Input - Wire Direct to Battery or ACC+
Pin 2 (Red) - Positive Output - Wire to Relay
Pin 4 (Red) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Designed for Positive Switching Only

Suits the following Toyota vehicles:

Camry 2011-2014
Corolla 2006-2013
Fortuner 2015-On
Hilux 2015-On
Kluger 2007-On
Landcruiser 200 Series 2016-On
Prado 200 Series 2015-On
Prado 150 Series 2010-2018
RAV4 2006-2011
Tundra 2007-2013
