9.66 Inch Touch Screen 4K Mirror Display Dual Recording, Streaming & Reverse Camera Kit
9.66 Inch Touch Screen 4K Mirror Display Dual Recording, Streaming & Reverse Camera Kit
Features:
9.66 Inch high resolution LCD touch screen mirror monitor with rubber clip-on mirror mounts for simple and secure installation onto existing rear-view mirror.
Dual channel recording with 4K front dash cam and rear camera, providing clear and crisp video footage of the front and rear of the vehicle.
Both cameras feature a 144 degree wide viewing angle for reducing blind spots.
Live streaming function enables the monitor to display rear vision while driving, ideal for vehicles with limited rear vision
Built in G-Sensor detects an impact to the vehicle and securely saves the video footage on the TF card separate from the continuous loop files.
Seamless continuous loop recording function that records in an indefinite loop without stopping, constantly overwriting the oldest file with the newest video.
Includes an 8m long rear camera cable to connect the rear camera to the mirror monitor.
Reverse trigger circuit displays reverse image & parking gridlines when reverse gear is engaged.
Includes 32GB TF card.
Mirror Monitor Specifications:
Monitor Size: 9.66 Inch
Monitor Resolution: 1920*480 pixel
Mounting Type: Clip on rear view mirror
Input Voltage: 5V 3A (12/24V Accessory power adaptor Included)
Video Input: 1 x 2.5mm socket (To connect reverse camera)
GPS Input: 1 x 3.5mm Input (GPS Module sold separately)
Monitor Size: 72mm(H) X 257mm(W) X 38mm(D)
Dash Camera DVR Specifications:
Number Of Channels: 2
Camera Resolution:
Front Camera: 3840*2160 @ 30FPS
Rear Camera: 1920*1080 @ 25FPS
Camera Viewing Angle:
Front Camera: 144 Degree
Rear Camera: 144 Degree
G-Sensor: Yes
Battery: 800MAH Battery
Auto Power On/Off: Yes
Microphone: Yes
Speaker: Yes
USB/Power Input: Yes (Type-C)
Power Adaptor Voltage: 12/24V
Input Voltage: 5V 3A
Hard Wire Kit: Optional (RVS966-HW4)
Recording Modes:
Continuous Loop: Yes
Driving Impact/Incident Detection: Yes
Manual (SOS): Yes
Park Monitoring: Yes
Memory Card Capacity / Class: Includes 32GB TF Card. (Supports TF Card class 10 Up To 128GB, sold seperately)
Video Format: TS
Picture Format: JPG
Storage Compression: H.264/H.265
DDR Built-in 2GG
Rear Camera Specifications
Mount Type: Surface mount
Camera Resolution: 1080P
Camera Angle: 144 Degree
Image Sensor: CMOS
Input Voltage: 12V
Connection Type: 4 Pin
Cable Length: 8 Metres (Included extension lead)
Parking Gridlines: Yes. (Must connect the reverse trigger wire on the video cable to the reverse gear circuit).
Camera Size: 26mm (H) x 45.5mm (W) x 40mm (D)
Kit Contents:
9.66 Inch Mirror Monitor With Inbuilt Dash Cam DVR
AHD Butterfly Reverse Camera with mounting screws and double sided tape
Includes 16GB TF Card
8 Metre Camera Extension Cable With Trigger Wire
12V/24V Accessory Power Adaptor
Rubber Mirror Mounting Clips & Mirror Protecting Pads
Packaging: Display gift box
Optional Accessories (sold separately)
RVS966-07M - 7.5m Camera extension cable for longer vehicle installation requirements

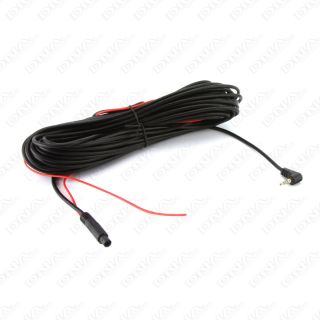

RVS966-15M - 15m Camera extension cable for longer vehicle installation requirements

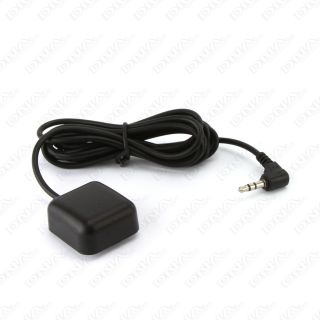

RVS966GPS – GPS Antenna module for GPS data logging.

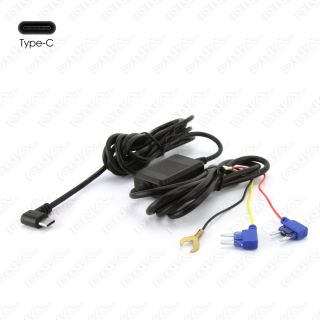

RVS966-HW4 - Hard wire cable available for hard wire connection to the vehicle fuse box instead of using the included accessory socket power adaptor. (Fitted with Mini blade fuses)
