7 Inch LCD 4 Channel Quad Rearview Screen

SKU
RV74

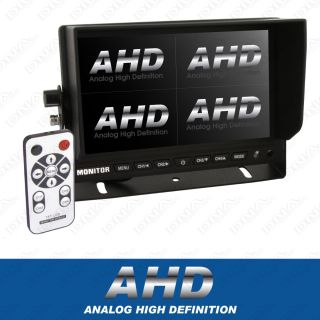

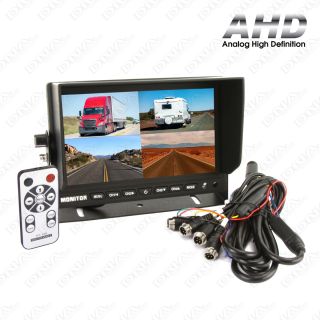

7 Inch LCD 4 Channel Quad Rearview Screen

This high resolution 4 Channel quad picture TFT-LCD monitor is ideal for multiple camera applications with 11 different image views, from full screen viewing and multiple split screen viewing.
Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans, Buses and Truck installations where a large viewing screen or multiple camera viewing is required.

7 Inch TFT-LCD display
Aspect Ratio: 16:9
Video System: (AUTO) PAL & NTSC
Resolution: 800 (RGB) x 480 Pixel
4 Camera Inputs with 4 triggered inputs for each camera (front, rear, left, right)
11 Different image modes
Dash mountable with U shape bracket
Screen sun visor
Inbuilt speaker
Illuminated touch front panel buttons
4 Pin water-resistant lockable camera connections
IR remote included
Image options: UP/Down and Left/Right (mirror)
Operating Temperature: -20°C /+70°C
Operating Voltage: 12V to 24V DC (+/- 10%)
Current Consumption: 5W
Size: 180mm W x 121mm H x 23mm D
Packaging: Display box
