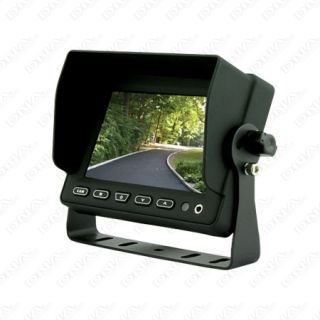

This high resolution 3 Channel TFT-LCD monitor is ideal for multiple camera applications for full screen viewing. Includes front panel touch buttons with a large sun visor and is ideal for Caravans and Truck installations where a medium size screen required.

Screen:
5 Inch TFT-LCD display
Aspect Ratio: 16:9
Video System: (AUTO) PAL & NTSC
Resolution: 800 (RGB) x 480 Pixel
3 Camera Inputs with 3 triggered inputs for each camera
1 Camera AV Input on front panel (CH1)
Dash mountable with either U shape bracket or round shape bracket
Screen sun visor

Inbuilt speaker
Illuminated front panel buttons
4 Pin water-resistant lockable camera connections
IR remote
Image options: UP/Down and Left/Right (mirror)
Operating Temperature: -20°C /+70°C
Operating Voltage: 12V to 24V DC (+/- 10%)
Current Consumption: 5W
Size: 141mm W x 103mm H x 25mm D
Supplied with 2 x L brackets for mounting 5 pin sockets to vehicle
Packaging: Display box

Cabling:

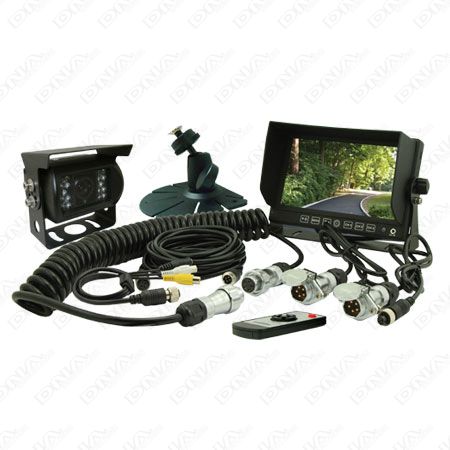

Kit contains
1 x 5M 4 Pin extension cable
1 x Woza trailer cable
1 x 10M 4 Pin Extension Cable

Camera:
Heavy Duty PAL CCD Truck/Bus/Caravan Camera

This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility.

¼ Inch Sharp PAL CCD Image processor
120° Horizontal Viewing angle
Horizontal Resolution: 420TV Line
IR LEDS: 18 IR Led
0 LUX illumination (night mode)
Operating Voltage: 12V or 24V DC
Sun Visor Included
Material: Aluminium alloy shell
S/N ratio: >48db
Waterproof rating to IP68
Video output: 1Vp-p 75 ohm composite
Supplied with 0.6m 4pin water resistant lockable connector
Dimensions: 86.5mm W x 77mm H x 74.5mm D

To Turn On Parking Lines:
To access sub menu push the following buttons on remote control: Up, Down, Left, Right, and then repeat press Menu button until sub menu displays on the screen.
All 3 channels can have parking lines.
Channel 1: Brown wire
Channel 2: Blue wire
Channel 3: Grey wire
Connect these wires to the postive wire of the reverse circuit
