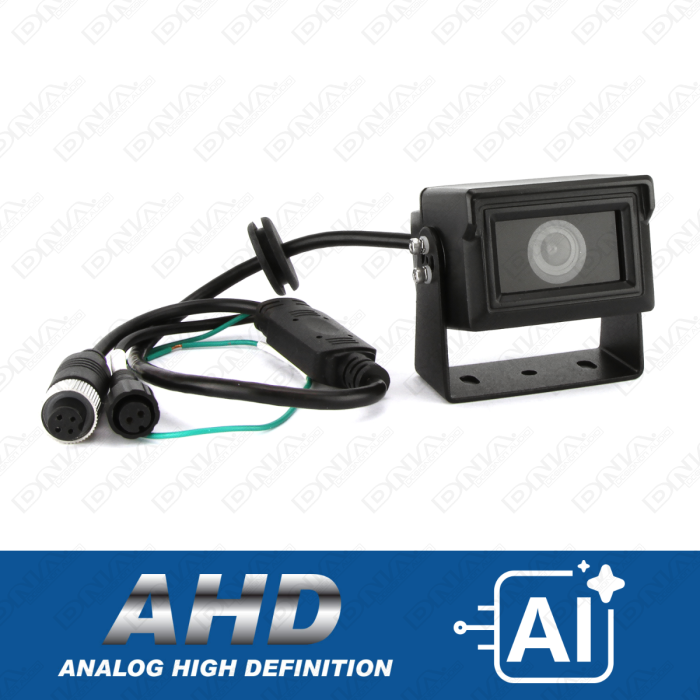

Heavy Duty Compact AHD AI Camera

Heavy Duty Compact AHD AI Camera - PAL/NTSC

DNA new AHD Artificial Intelligence Heavy Duty Camera, a commercial-grade solution engineered for advanced vehicle safety and surveillance. Built to deliver exceptional image clarity and dependable performance, this rugged camera utilises Analogue High Definition technology to provide crisp, high-resolution visuals that significantly improve visibility and situational awareness around the vehicle.

Latest AI pedestrian detection technology, the camera can identify both stationary and moving people up to 10 metres away. When a person enters the vehicle’s driving or reversing path, the system triggers an audible alert on the compatible monitor and displays a dynamic on-screen visual warning that changes colour as the detected person moves closer, giving drivers clear and immediate feedback.

Image Sensor: CMOS
Video Output: Default AHD 1080P/PAL System (1080P/720P/CVBS, NTSC/PAL adjustable by control box)
Resolution: 1080P
Built-in AI
0.1 LUX F1.2
105° Horizontal Viewing angle
Horizontal Resolution: 600TV Line
Operating Voltage: 12V DC
Sun Visor Built Into Casing
Material: Aluminium alloy shell
Waterproof rating to IP69K
Video output: 1Vp-p 75 ohm composite
Supplied with 0.6m 4pin water resistant lockable connector
Dimensions (Camera Only):  55mm W x 40mm H x 49mm D
Dimensions (Camera & Bracket):  68mm W x 57mm H x 49mm D
Packaging: Box

Controller:
Press key to bring up the menu and press the direction keys to adjust the desired settings.
Then press save and exit to save your configuration and exit the menu
For the guideline setting, you could press and hold the key for 3 seconds to save and exit the setting.
