HD-TVI Reverse Camera Adjustable Stalk Mount

HD-TVI Reverse Camera Adjustable Stalk Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

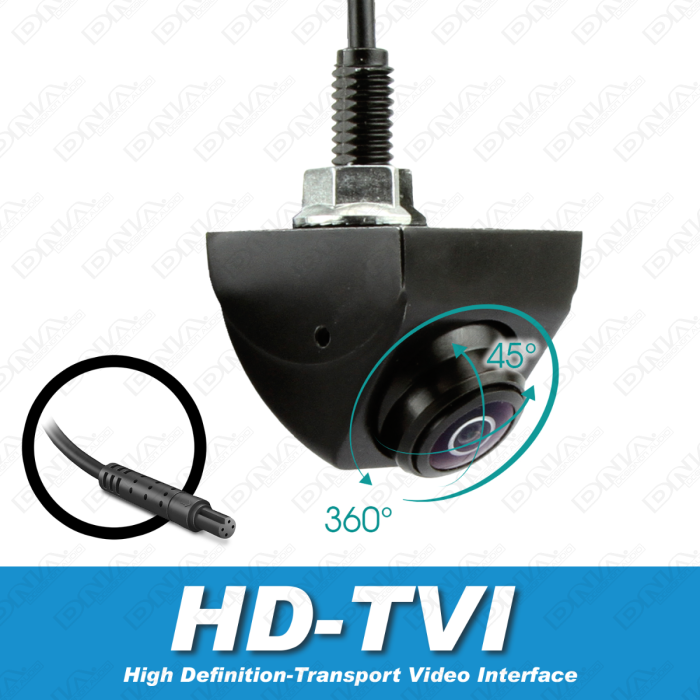

Featuring a flexible stalk that allows for precise positioning with lens head can be adjusted 45 degrees up, down, left, or right, and supports a full 360-degree rotation, enabling users to customize the viewing angle to suit any vehicle setup or parking scenario.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Only Requires 8mm Hole
1080P/720P*
Mirror Image*
Flip Image*

Features:
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Selectable features:
1080p/720p format (Purple wire):  By default is set to 1080P.  (Cut wire to change to 720P)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Video System:                     HDTVI
Resolution:                         1280(H)*720(V)
Frame Rate:                       30fps
View Angle:                        170°
Working Voltage:               DC6V-15V±0.5V
Waterproof Rating:           IP68
Camera Body Size:            28mm W x 22mm H x 22mm D
Butterfly Base Size:           44mm L x 18mm W
Packaging:                          DNA Gift box with sleeve

Compatible with headunits compatible with HD-TVI format
