Large Switch To Suit Nissan - Blank Universal
Suits the following Nissan vehicles:
Navara 2007-2015 D40
Pathfinder 2005-2006 R51
Pathfinder 2007-2010 (MY08) R51
Pathfinder 2010-2013 R51
Patrol 1997-2009 GU
Patrol 2010-On GU7, Y61
Patrol 2012-On Y62
X-Trail 2007-2013 T31

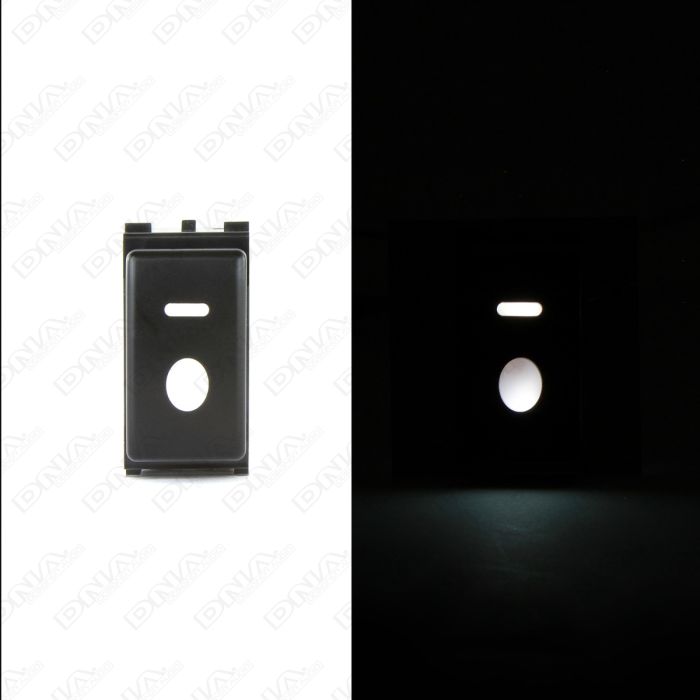

Designed to fit directly into a blank factory switch socket in Nissan vehicles.
Simply just pop out the old blanking socket and plug this switch in.
Size: 44mm H x 21.5mm W x 53mm D
Power Rating: 12VDC 3 Amp
Illumination: Dual White
Switch Style: SPST ON-OFF
Switch Colour: Black
Switch Markings: Simple Eclipse Design
Packaging: DNA Blister & Card
Wiring - From Top to Bottom:
Pin 1 (Blue) - Positive Input - Wire Direct to Battery or ACC+
Pin 2 (Green) - Positive Output - Wire to Relay
Pin 4 (Yellow) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Designed for Positive Switching Only
