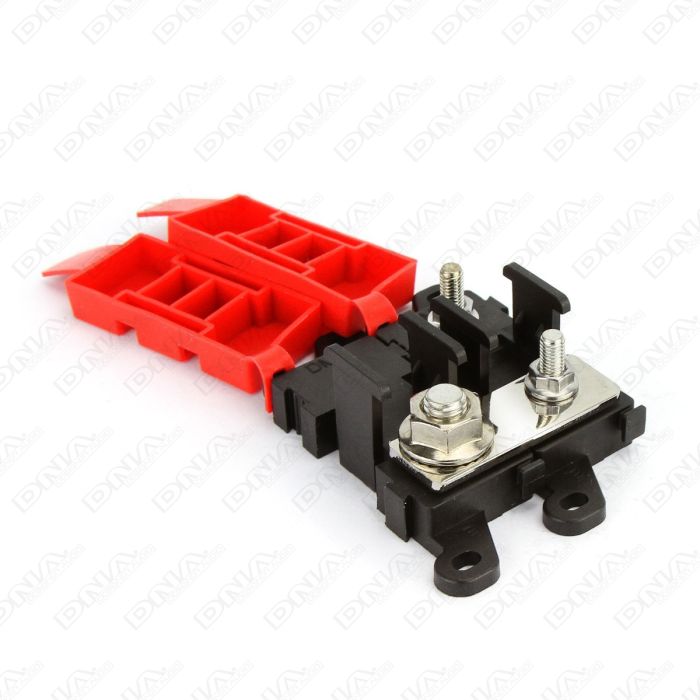

Single Way Modular AMI/Midi Fuse Holder

Single Way Modular AMI/Midi Fuse Holder

Complete modular power distribution pack including 1 input module and 1 fuse holder, pre-configured with a 2-hole MIDIBB busbar for easy connection.
Designed for high-current DC systems, this compact setup provides a simple, secure, and expandable solution for automotive, marine, caravan, and off-grid applications.

Included Components:
1 × MIDI010-N (Input Module)
1 × MIDI010 (Fuse Holder)
1 × MIDIBB02 (2-hole Busbar)

Specifications
Fuse Type: AMI / MIDI
Maximum Voltage: 24V DC
Maximum Current: 200A per fuse holder, 400A total system capacity
Terminal Type: M8 input stud / M5 fuse studs
Housing Material: High-temperature thermoplastic
Mounting: Surface mount, bolt-down
Operating Temperature: -40°C to +85°C

Also Available:
MIDI010 - Fuse Holder
MIDI010-N - Input Module
MIDI010-5 - 5 Way Module
MIDI010-4 - 4 Way Module
MIDI010-3 - 3 Way Module
MIDI010-2 - 2 Way Module
MIDI010-1 - Single Way Module
