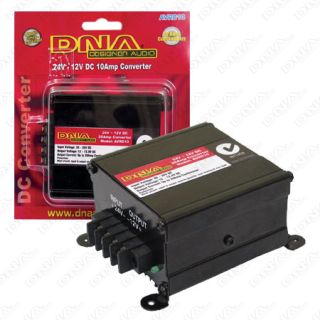

24-12VDC Converter 10 Amp Dual Output

24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.

Output 1: using the terminals on the side of the case.

Output 2: using the 3 wires.

SKU

AVR010DP

In stock

$99.95

Quick Overview

24-12VDC Converter 10 Amp Dual Output

Fast Shipping
Australia Wide

Australian Owned
& Operated

Secure Checkout
Multiple Payment Options

24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.

Output 1: using the terminals on the side of the case.

Output 2: using the 3 wires.

Details

Product Overview

24 Volt DC to 12 volt DC voltage reducer with dual outputs. Fitted with 2 independent 12VDC outputs.

Output 1	using the terminals on the side of the case.
Output 2	using the 3 wires.
White	12VDC postive output
Black	negative output
Blue	24VDC trigger wire for activating the circuit.

Input DC voltage range	DC20~30V DC
Output voltage range	12V~13.8V
Continuous power	10 Amps
Peak power	15 Amps
No load current draw	20mA
Max. power efficency	>90%
Cooling	Air convection
Input polarity reverse	Diode protection
Output polarity reverse	Circuit protection
Over heating	Circuit protection
Over load	Circuit protection
Output short	Circuit protection
Fuse	15 Amps
Dimension (LxWxH)	90 x 73 x 45mm
Weight	330g
Packaging	Sliding blister and card with hang hole
