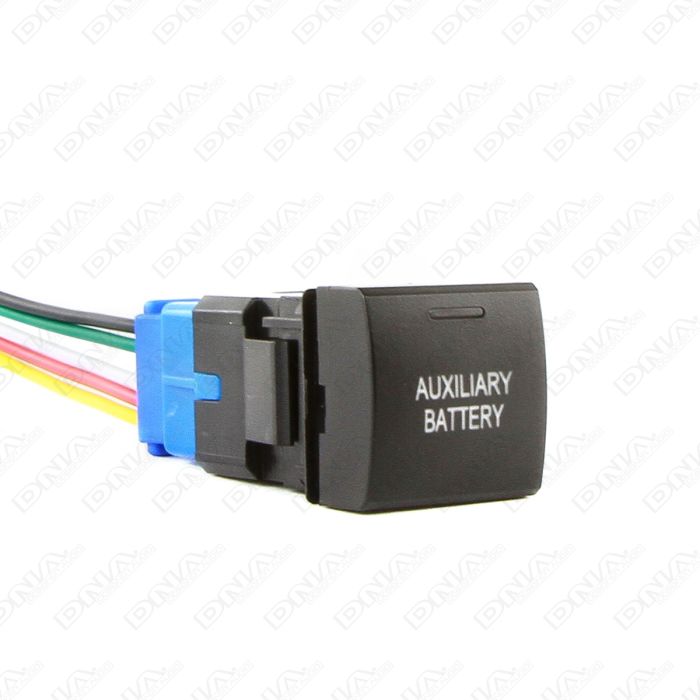

Small Square LED Momentary Switch To Suit Toyota - Auxiliary Battery

$28.95 RRP
SKU
TOYSW04AB

Suits Toyota Vehicles:
Camry 2018-On
Prado 150 Series 2018-On
RAV4 2019-On
And other Toyota vehicles using square switches

Designed to fit directly into a square blank factory switch socket in Toyota vehicles.
Simply just pop out the old blanking socket and plug this switch in.

Size: 22mm H x 22mm W x 52mm D
Power Rating: 12VDC 3 Amp
Illumination: Dual White
Switch Style: Momentary On
Switch Colour: Black
Switch Markings: Auxiliary Battery
Packaging: DNA Blister & Card

Wiring - From Top to Bottom:
Pin 1 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Pin 2 (Green) - Positive Input - Wire Direct to Battery or ACC+
Pin 4 (White) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Red) - Positive Output - Wire to Relay
Pin 6 (Yellow) - 12V Positive Output Illumination - Wire to Relay with Pin 5
Designed for Positive Switching Only
